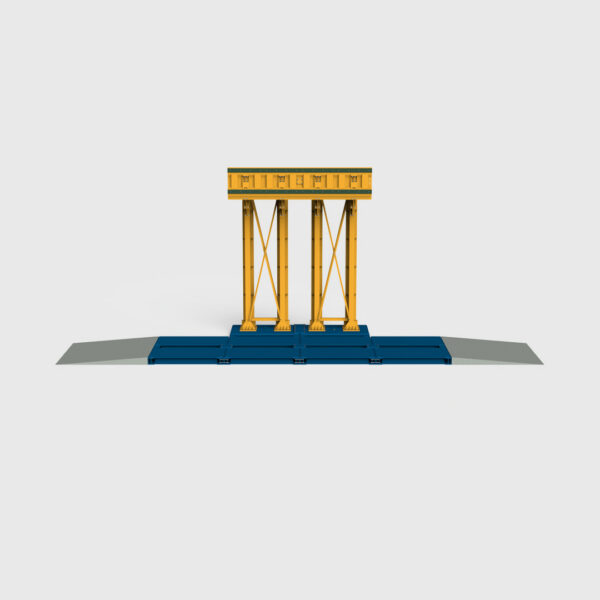

pit lane gantry front view
pit lane gantry right view
pit lane gantry bulkx back view
pit lane gantry left view

Pit Lane Gantry BulkX

Th Pit Lane Gantry BulkX configuration allows discharge on the roadside and can also be used by other delivery vehicles, maximising available space.

The system consists of BulkX skip and an innovative gantry enabling the muck-away truck to act as part of the counter-balance mass. Take advantage of this configuration for sites with limited space where a single road closure can be used for efficient muck away, when it also needs to be used to offload delivery vehicles.

This is a proven concept used on several projects, however our engineering team will support on your specific project to design and install completely bespoke solutions. For more information on the full BulkX range, click here.

Quantity
SKU: N/A Category:

Specification

The Pit Lane Gantry configuration allows for all our standard BulkX skip sizes below. Bespoke skip sizes are also available upon request. Contact our team for more information regarding bespoke solutions.

Skip

PRODUCT TYPE PRODUCT CODE HEIGHT  HEIGHT (WITH BALE) WIDTH LENGTH WEIGHT WLL* CAPACITY
BulkX 3000 CA505-03000 1255mm 2230mm 1985mm 2620mm 1350kg 6000kg 3000 litres
BulkX 4000 CA505-04000 1150mm 2940mm 2005mm 2630mm 1500kg 8000kg 4000 litres
BulkX 6000 CA505-06000 1876mm 2765mm 2930mm 2930mm 1800kg 12000kg 6000 litres
BulkX 10000 CA505-10000 1485mm 2127mm 4250mm 4250mm 4000kg 25000kg 10000 litres
BulkX 12000 CA505-12000 2175mm 3088mm 2568mm 5200mm 4100kg 24000kg 12000 litres


Gantry

PRODUCT CODE HEIGHT  WIDTH LENGTH WEIGHT GANTRY HOOK WLL* PLATFORM WLL*
DG800-6000 5470mm 4180mm 12940mm 9570kg 14000kg 44000kg
* Working Load Limit
