Concrete Kibble Without Bale Arm

Name: Concrete Kibble Without Bale Arm
SKU: 5421
Availability: InStock

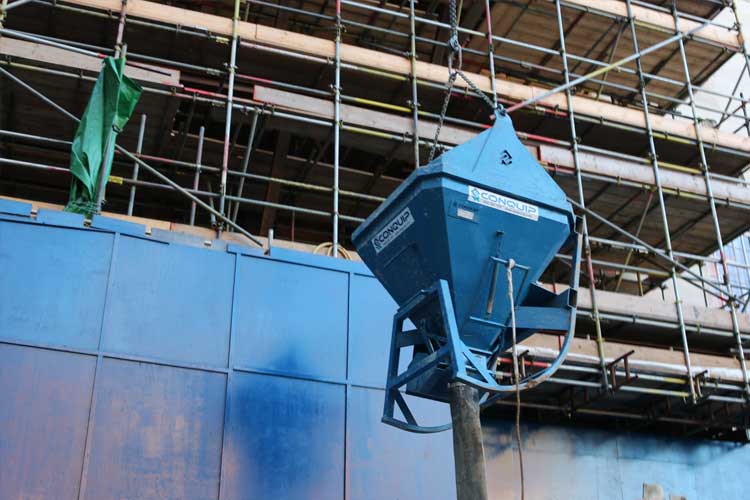

The Conquip Concrete Kibble Without Bale Arm, sometimes known as a Tremie Kibble, is a versatile, all-purpose kibble used for pouring concrete in columns, walls, narrow formwork, and pipe laying applications. This without bale arm version is available in a range of sizes from 500 litres to 4000 litres. We also offer this kibble with a bale arm, rather than lifting chains – click here to view.

Manufactured in the UK

Safe

Capacity

Optional Extras

Blowout Attachment

Quantity

Specification

PRODUCT CODE	HEIGHT	WIDTH	LENGTH	WLL*	WEIGHT	CAPACITY
CS210AA-00500	1270mm	1130mm	1970mm	1500kg	360kg	500 litres
CS210AA-01000	1465mm	1385mm	2350mm	3000kg	490kg	1000 litres
CS210AA-01500	1660mm	1590mm	2450mm	4500kg	580kg	1500 litres
CS210AA-02000	1670mm	1590mm	2730mm	6000kg	670kg	2000 litres
CS210AA-03000	2130mm	1980mm	3500mm	9000kg	1000kg	3000 litres
CS210AA-04000	2350mm	2150mm	3830mm	12000kg	1480kg	4000 litres

*Working Load Limit

Provided with a 3-metre length of reinforced rubber discharge hose and pull rope for pouring concrete.
Deflector plate prevents concrete splashing personnel or contaminating the ground below when the flow gate opens and closes.
Grout tray collects any excess concrete during flow gate operation.
Robust design to ensure durability on construction sites.
A strong spring retractor ensures automatic closing of the discharge gate when pouring is complete.

Reinforced heavy duty gate mechanism to reduce gate wear and jamming.
Reinforced & enclosed roll frame to prevent bending and concrete filling up in the channels.
Easily removable gate mechanism for ease of emplacement when worn.
Multiple optional extra’s for larger and longer hoses, hose directional placement and gate upgrades.

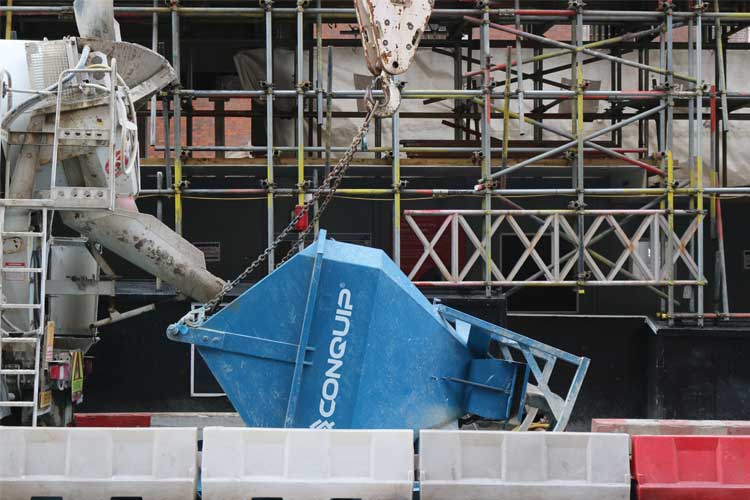

Designed to lay horizontally on the ground to assist filling from the concrete truck.
Available in a range of sizes with capacities from 500 to 4000 litres, ensuring there is a solution for every project, regardless of the crane capacity or amount of concrete required.
Version with bale arm also available – click here to view
Now available with a range of NEW modifications to improve safety on-site:
01/ Extended Flow Gate Handle: Removes operative from underneath the kibble when operating the flow gate.
02/ Hose Guide: Allows operatives to position the hose during a pour without being stood underneath the kibble.
03/ Bauer Connection: Quick-release system for switching between different hose lengths without needing to tamper with hose clips and refit hoses.
Blowout Attachment available for clearing concrete lines into the kibble after use, minimising concrete waste and improving project sustainability.
