crane forks cage from a front view with crane forks

crane forks cage loaded with a pallet truck

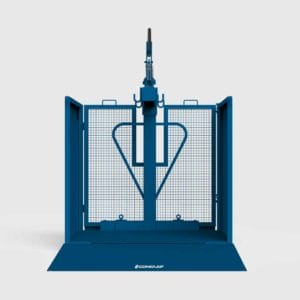

crane forks cage with crane forks front and back view

Crane Forks Cage

Name: Crane Forks Cage
SKU: 3161
Availability: InStock

The fail-safe method for moving and lifting blocks and bricks.

The Conquip Crane Forks Cage is a steel box to safely carry pallets of bricks or blocks and is only designed for use with Conquip Crane Forks, including the fixed and telescopic height models.

The concept was designed in conjunction with leading UK contractors and lifting personnel, following a lot of near-misses and accidents with Crane Forks being used with a net. The main concerns were due to brick pallets or wrapping failing and safety restraint net user error.

As a manufacturer, we recommend this as a fail-safe way of transporting bricks and blocks around a building site, when used with the Crane Forks. It is not a standalone piece of lifting equipment.

Best Practice Solution

Quick Delivery

Hire/Purchase

Clear

Quantity

SKU: N/A Category: Lifting Equipment Tags: brick forks, brick pallet, ca147, crane attachment, crane forks, crane lifting equipment, goods lifting, lifting cage, lifting gear, pallets lifting, steel, transporting bricks

Specification
Details

Specification

PRODUCT CODE	HEIGHT	WIDTH	INTERNAL WIDTH	LENGTH	INTERNAL LENGTH	WEIGHT	WLL*
CA147-01560	1290mm	1390mm	1300mm	1540mm	1200mm	440kg	1560kg

*Working Load Limit

Details

Product Details

Fail-safe method for moving and lifting blocks and bricks.
Large internal area to suit all known pallet sizes (1160mm length x 1300mm width).
Lightweight to ensure that all known brick and block packs can be lifted and still be within the Working Load Limit stated for the Conquip Crane Forks.
Cost effective as it is compatible with existing Conquip Crane Forks.
Robust latch mechanism to prevent door opening after it has been shut.

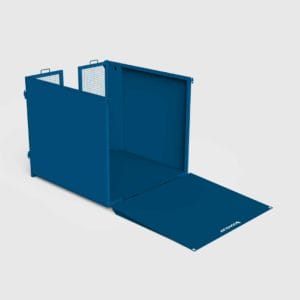

Ramped access as well as gate, to ensure it can be unloaded by a pallet truck on a scaffold loading bay, CantiDeck or anywhere with reduced ceiling height.
