Concrete Twinflow Skip
A versatile, multi-use skip for directional pouring of concrete.
The Conquip Concrete Twinflow Skip is a general purpose skip for fast and accurate placing of concrete.

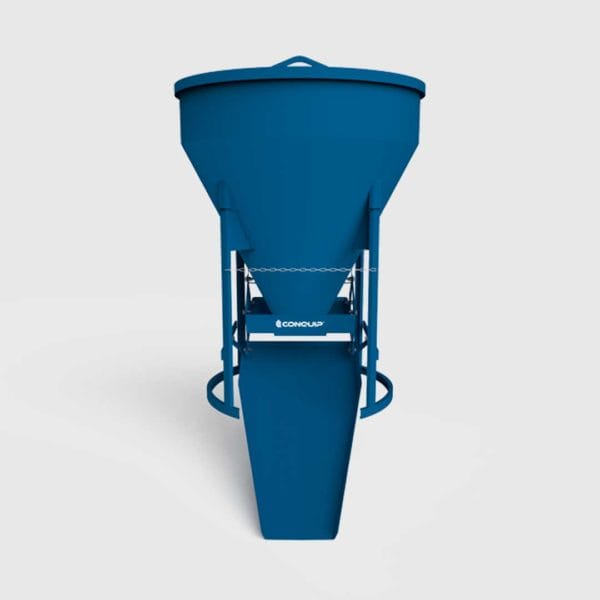

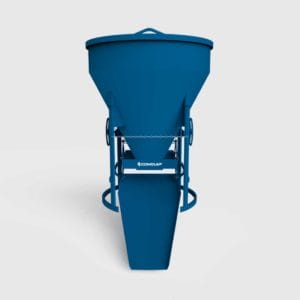

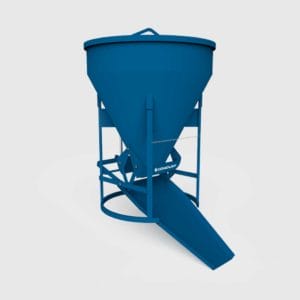

It can be used as a bottom discharge skip for mass concrete pours, or as a side discharge skip for more accurate placing of concrete in shutters It can be either geared or levered opening for easy flow.
Specification
*Working Load LimitPRODUCT TYPE PRODUCT CODE HEIGHT LENGTH WIDTH WLL* WEIGHT CAPACITY Levered Twinflow Skip CS203-00500 1650mm 1460mm 1110mm 1500kg 140kg 500litres Levered Twinflow Skip CS203-00500 1460mm 1810mm 1500mm 2250kg 215kg 750litres Levered Twinflow Skip CS203-01000 2000mm 1700mm 1510mm 3000kg 240kg 1000litres Geared Twinflow Skip CS204-00500 1650mm 1460mm 1110mm 1500kg 205kg 500litres Geared Twinflow Skip CS204-00750 1460mm 1810mm 1500mm 2250kg 215kg 750litres Geared Twinflow Skip CS204-01000 2000mm 1700mm 1510mm 3000kg 220kg 1000litres
