bulkx with free standing gantry configuration discharging into a truck

Free Standing Gantry BulkX

Name: Free Standing Gantry BulkX
SKU: 9823
Availability: InStock

The free standing gantry configuration allows for repositioning of the discharge area around the site.

The Free Standing Gantry BulkX system comes with a complete crane lift framework which can be installed in the desired location for the discharge area. The truck can drive or reverse under the frame.

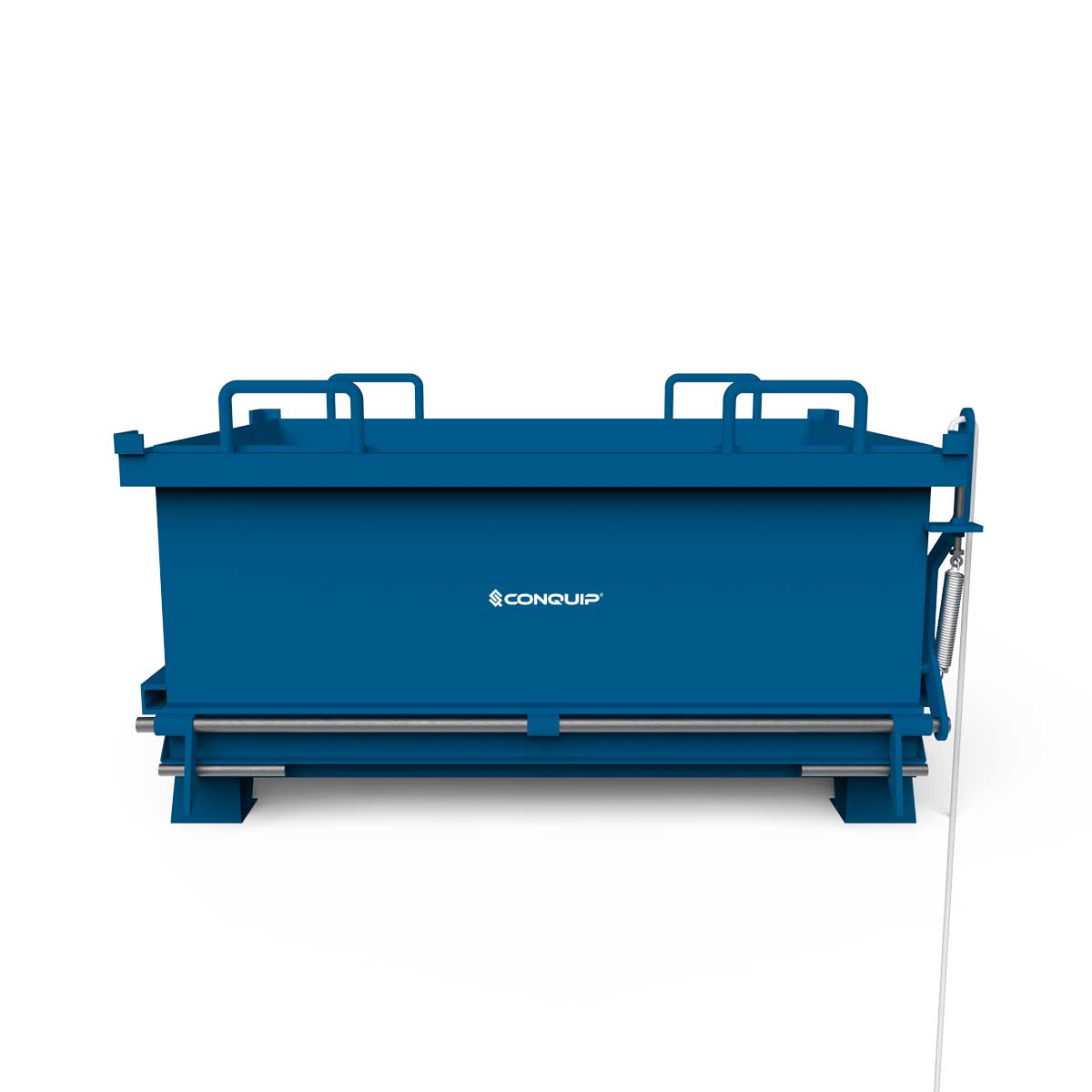

BulkX skip, once lowered into position, interlocks with the gantry. The crane operator can then lower the lifting chains which opens the skip doors discharging the waste into the back of the truck. Doors closes once the skip is crane lifted off the gantry.

This configuration is ideal for site where the location of the discharge area needs to change throughout the project. An example of this is where a one lane road closure is permitted during certain hours in an excavation program – the Free Standing Gantry can be used in the one lane road closure throughout the day and then moved at night to allow the road to open again.

Best Practice Solution

Efficient

BulkX Skip Capacity

Gantry Size

Hire/Purchase

Clear

Quantity

SKU: N/A Category: BulkX

Specification
Details

Specification

The Free Standing Gantry configuration allows for all our standard BulkX skip sizes below. Bespoke skip sizes are also available upon request. Contact our team for more information regarding bespoke solutions.

Skip

PRODUCT TYPE	PRODUCT CODE	HEIGHT	HEIGHT (WITH BALE)	WIDTH	LENGTH	WEIGHT	WLL*	CAPACITY
BulkX 3000	CA505-03000	1255mm	2230mm	1985mm	2620mm	1350kg	6000kg	3000 litres
BulkX 4000	CA505-04000	1150mm	2940mm	2005mm	2630mm	1500kg	8000kg	4000 litres
BulkX 6000	CA505-06000	1876mm	2765mm	2930mm	2930mm	1800kg	12000kg	6000 litres
BulkX 10000	CA505-10000	1485mm	2127mm	4250mm	4250mm	4000kg	25000kg	10000 litres
BulkX 12000	CA505-12000	2175mm	3088mm	2568mm	5200mm	4100kg	24000kg	12000 litres

Gantry

PRODUCT CODE	BULKX SKIP CAPACITY	HEIGHT	WIDTH	LENGTH	WEIGHT	WLL*
DG250-6000	Up to 6000 litres	5400mm	6500mm	3500mm	4800kg	12000kg
DG250-12000	Above 6000 litres	5841mm	4910mm	6668mm	7500kg	28000kg

* Working Load Limit

Details

The Free Standing Gantry BulkX is a bulk excavation solution for applications such as tunnelling, shaft sinking, demolition arisings removal and basement excavations.
Available for a variety of BulkX skip sizes – see the product specification.
Conquip can manufacture any required bespoke skip size and will collaborate with the site team to develop the ideal gantry solution for your site, or in some cases without a gantry, see our Direct-to-Truck BulkX system.
We can assist you with the planning of the ideal BulkX size, so you can a reduce costs and save time on your excavation and loadout of spoil trucks.
