Goods Cage

Lifting cage for transporting and lifting materials or equipment.

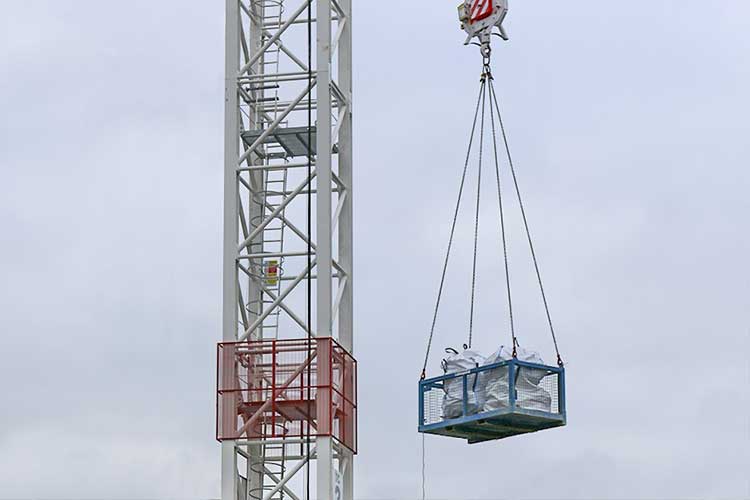

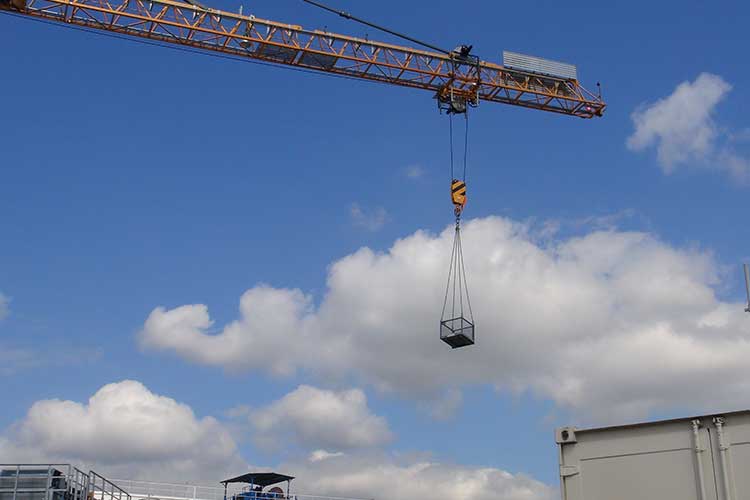

The Conquip Goods Cage is a safe, convenient method of transporting materials to and from high or low locations on site.  With the increase in regulations around lifting materials safely on site and offsite construction, the Goods Cage is an asset to any project.

It is manufactured in a range of sizes and with ramp and gate access variations. Available to crane lift or fork lift for easy manoeuvrability around site.

Quantity

Specification

PRODUCT CODE SIZE  TYPE HEIGHT LENGTH WIDTH WLL* WEIGHT
CA118-01638 Small Gate Access 1280mm 1280mm 1280mm 3000kg 270kg
CA124-01658 Small Ramp Access 1300mm 1360mm 1300mm 3000kg 300kg
CA118-03277 Large Gate Access 1280mm 2560mm 1280mm 3000kg 450kg
CA124AK-03277 Large Ramp Access (Short Side) 1300mm 2645mm 1300mm 3000kg 460kg
CA124AL-03277 Large Ramp Access (Long Side) 1300mm 2560mm 1300mm 3000kg 500kg


Internal Dimensions

PRODUCT CODE SIZE TYPE LENGTH WIDTH CLEAR AREA LENGTH CLEAR AREA WIDTH
CA118-01638 Small Gate Access 1176mm 1180mm 956mm 1055mm
CA124-01658 Small Ramp Access 1130mm 1180mm 956mm 1055mm
CA118-03277 Large Gate Access 2460mm 1173mm 2309mm 994mm
CA124AK-03277 Large Ramp Access (Short Side) 2410mm 1180mm 2276mm 1055mm
CA124AL-03277 Large Ramp Access (Long Side) 2460mm 1130mm 2309mm 994mm
*Working Load Limit
