concrete kibble washing system side view

Concrete Washout System

Name: Concrete Washout System
SKU: 3100
Availability: InStock

An innovative approach to concrete water management on construction sites.

The Conquip Concrete Washout System is a complete, best practice solution for concrete washout. It is a unique, compact, simple solution which enables you to reuse concrete water from the washing out of concrete trucks, concrete pumps and concrete kibbles.

Not only will it improve your environmental footprint, the system is easy to use, safe and cost effective.

Best Practice Solution

Efficient

With/Without Skip Washing Platform

Clear

Quantity

SKU: N/A Category: Concrete Washout Tags: concrete kibble washing, concrete washout, concrete waste water system, cs231, cs241, cs244, reuse concrete water, site waste management

Specification
Details

Specification

PRODUCT TYPE	PRODUCT CODE	HEIGHT	LENGTH	WIDTH	FORK POCKET (W x H)	WLL*	WEIGHT	CAPACITY
Filtration Tray	CS236-02100	764mm	2613mm	1900mm	150 x 70mm	1000kg	565kg	2100 litres
Skip Washing Platform	CS241	4395mm	2960mm	2208mm	-	-	590kg	-
Water Storage Tank	FB306-02000	2900mm	2693mm	1500mm	150 x 70mm	2000kg	570kg	2000 litres

*Working Load Limit

Details

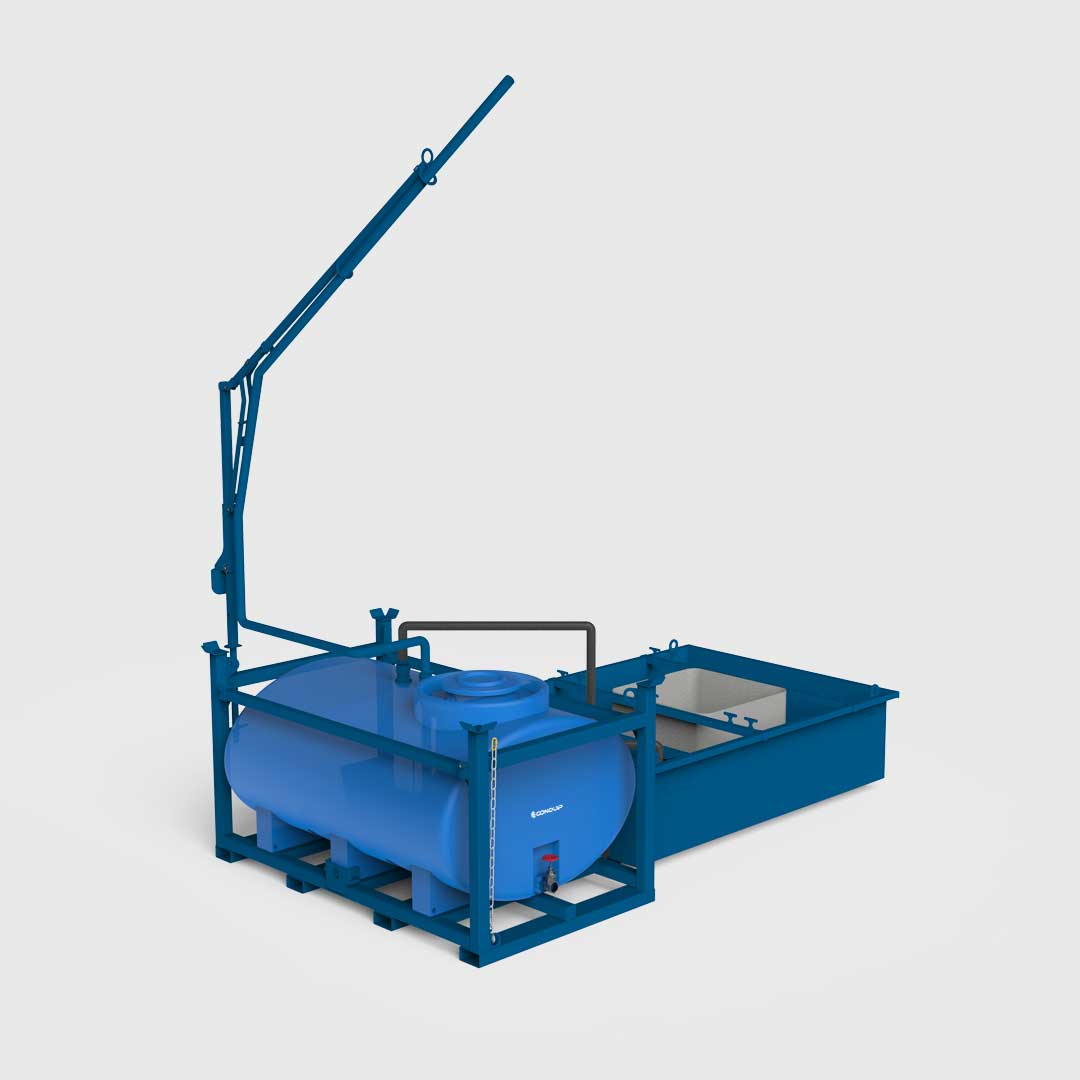

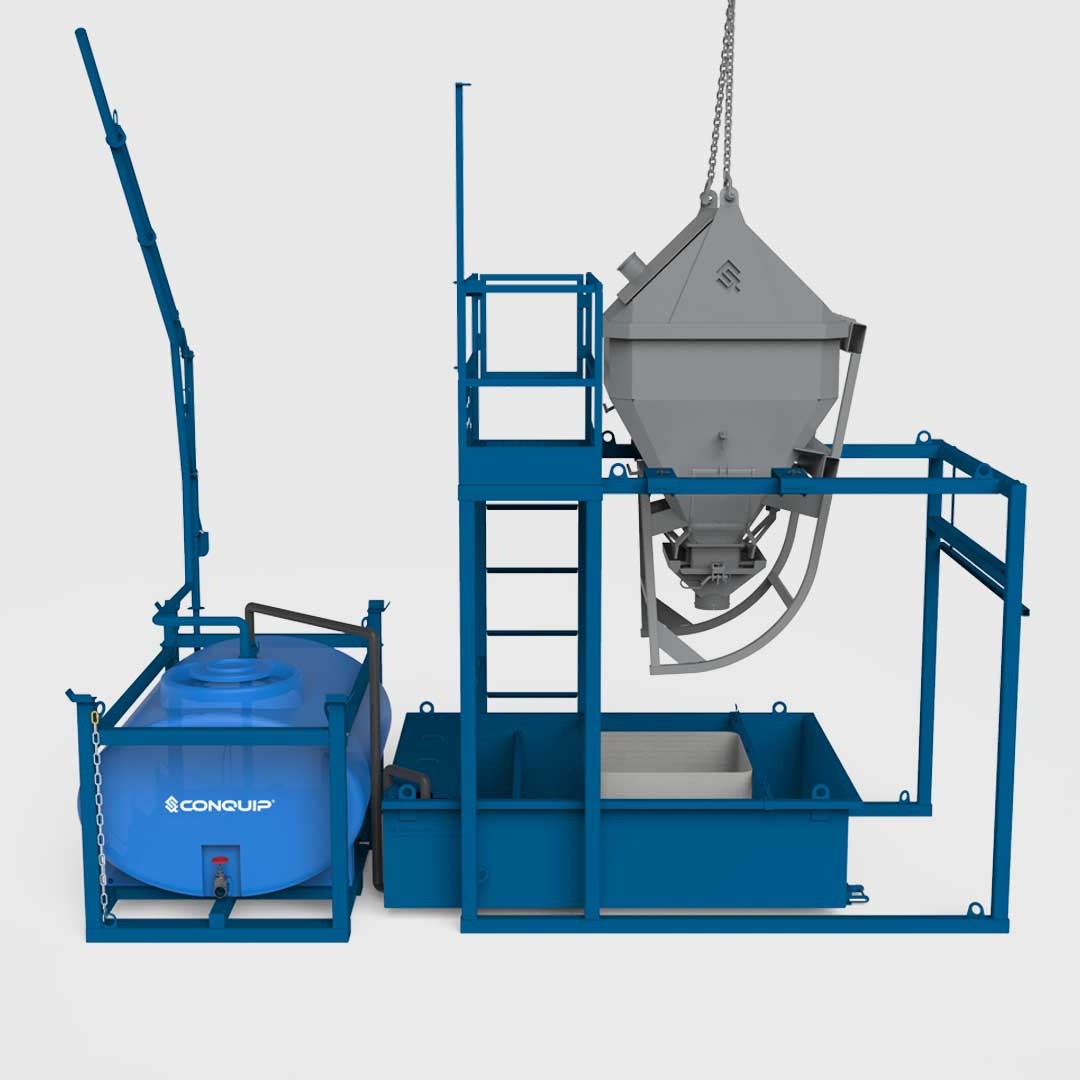

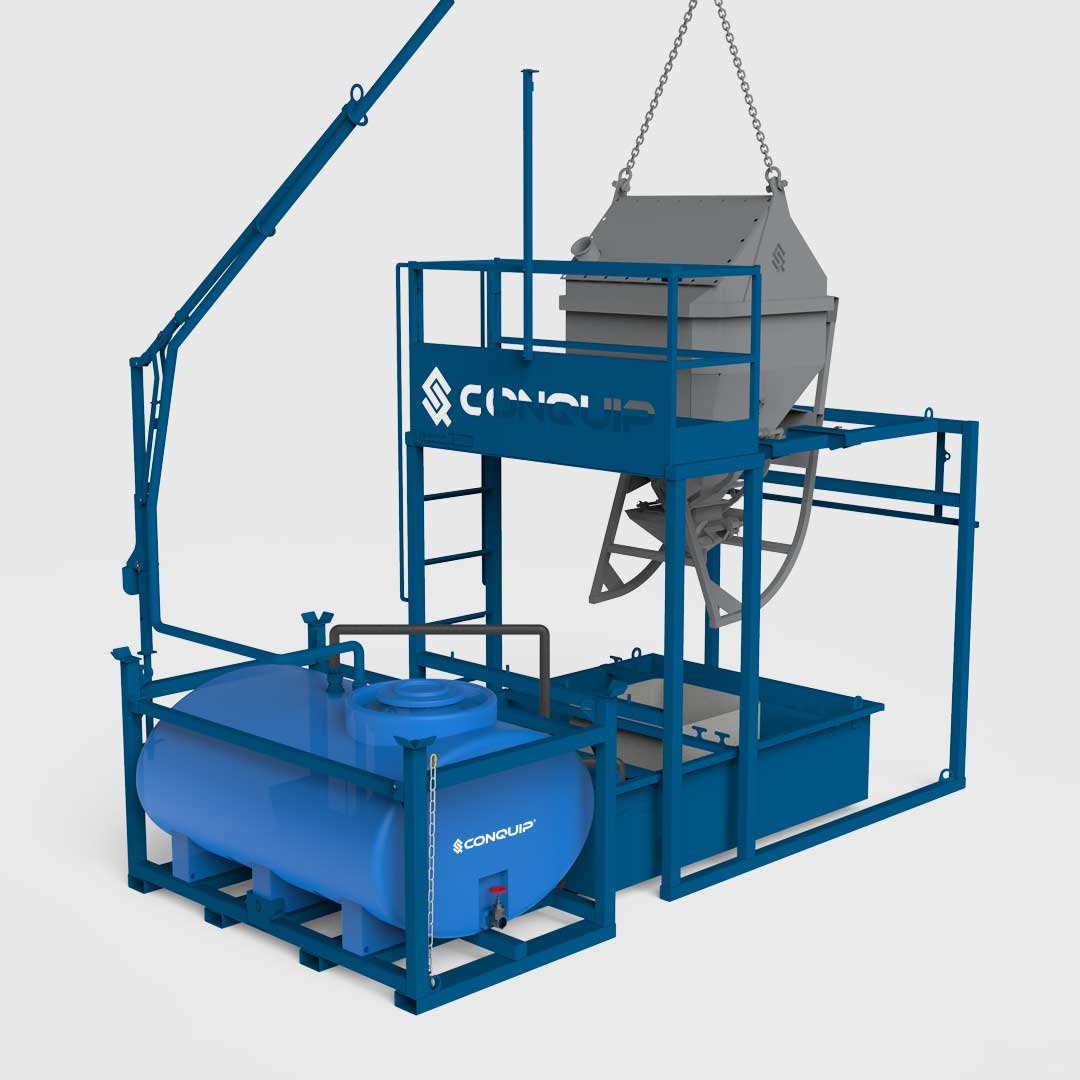

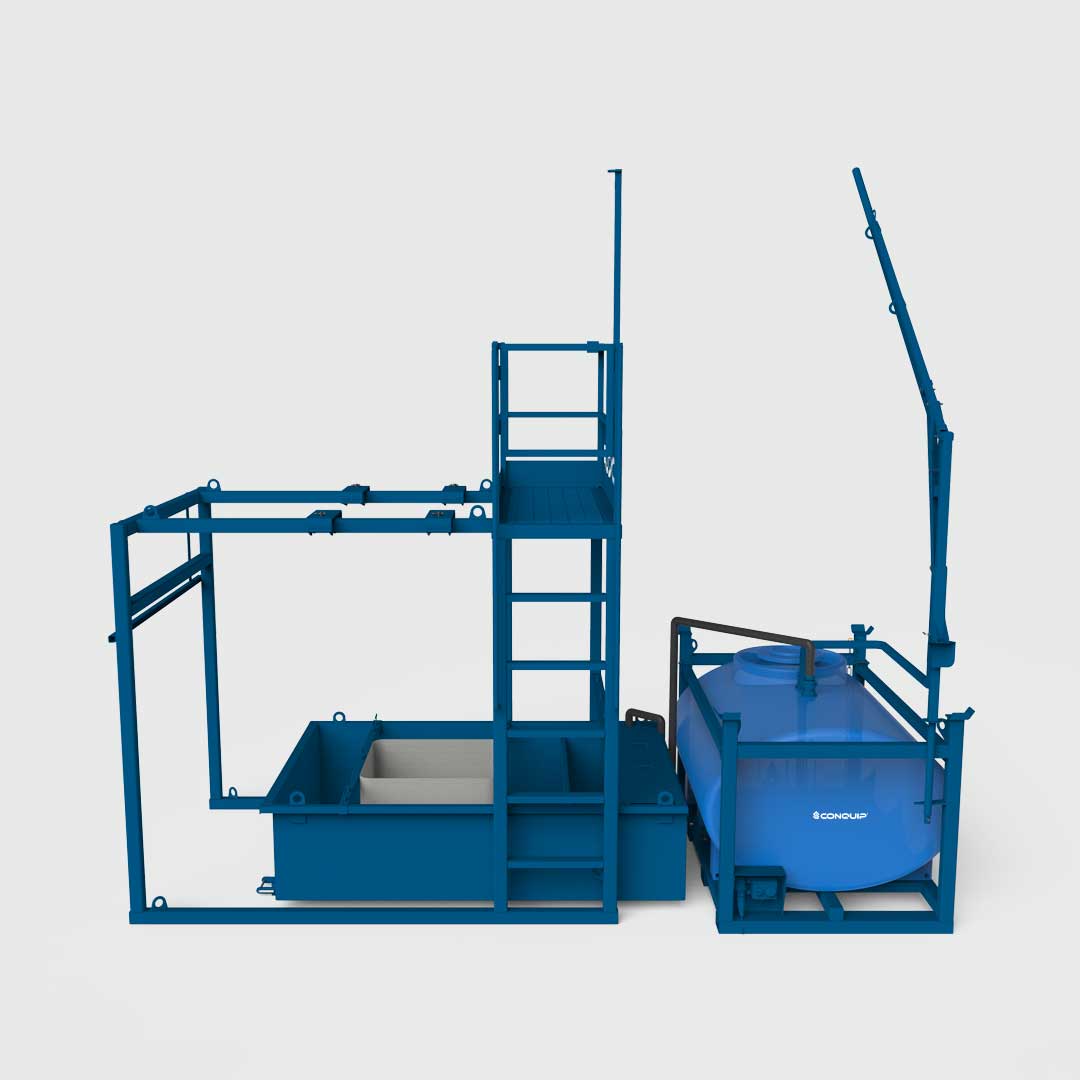

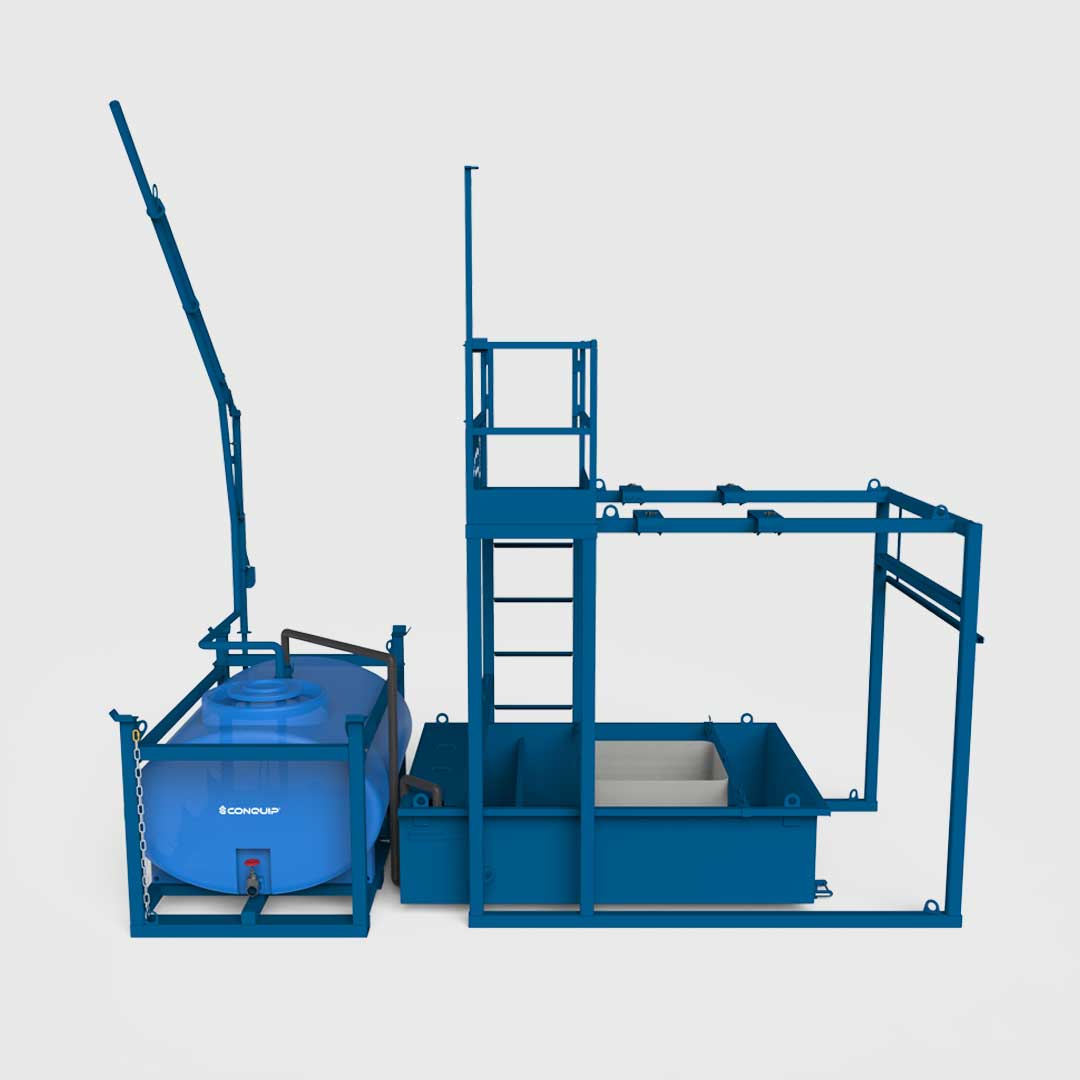

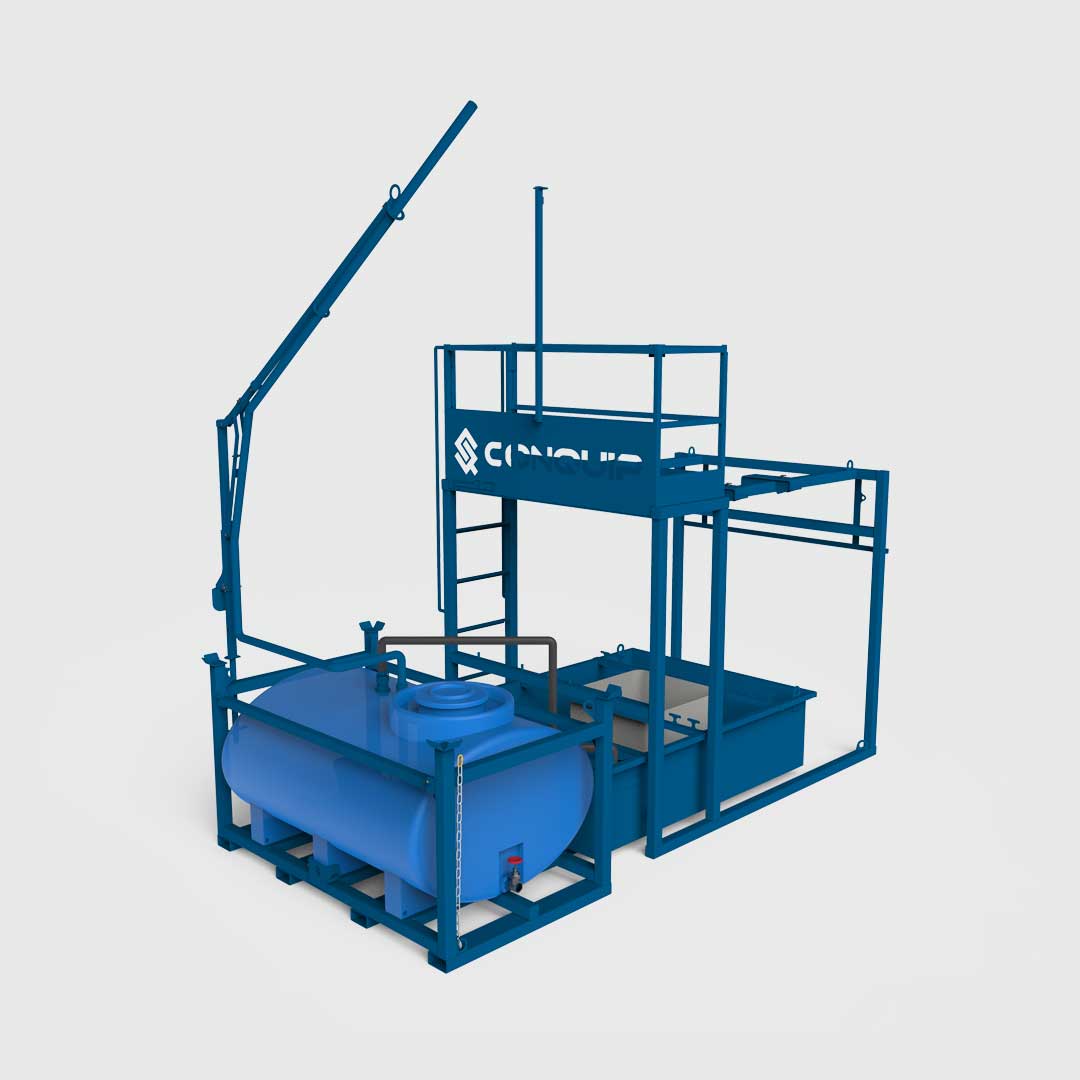

It is made up of 3 different components: a filtration tray, a kibble washing platform and a water storage tank.
Complete environmentally-friendly methodology for concrete washout. Enables you to reuse concrete waste water.
Can be used for different applications, including washing of concrete kibbles, concrete pumps and concrete trucks.
Compact, space saving system.
Compatible with the Conquip concrete blowout attachment and previous models of kibble washing systems.
